Sliding
Window-Doors

1. Sliding non insulated system COMFORT M900

COMFORT M900 is the lightest sliding system for the lowest cost investment. Ideal proposal for low-cost solutions without compromising quality.

Advantages

  • Solutions for small spans
  • Wide variety of typologies
  • Special hotel solutions

Certificates

      Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE: Sliding
THERMAL INSULATION: No
EXTERIOR SHAPE: Curved

Technical Characteristics


SASH DEPTH 28 mm
SASH WEIGHT up to 80 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT 81 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE) 67,8 mm
GLAZING TYPE Single – Double
MAXIMUM GLAZING THICKNESS from 3 mm up to 21 mm
MECHANISM Sliding mechanism
SEALING METHOD Perimetrical with hi-fin gaskets

Characteristics


TYPES OF TYPOLOGY
Double and triple horizontal sliding sashes, Meeting stile, Pocket typologies, Combined with fly-screen and shutter


TYPOLOGIES

All available typologies

01
Double horizontal sliding sash
02
Triple horizontal sliding sash
03
Double horizontal parallel sliding window with fly-screen
04
Single horizontal sash pocket window
05
Single horizontal pocket with fly-screen & shutter
06
Double pocket horizontal sliding window with fly-screen & shutter

2. Sliding non insulated system COMFORT M9050

Description

COMFORT M9050 is a non-insulated sliding aluminium system whose main characteristics are the low weight and curved shape of the profiles.

Advantages

  • Very good value for money
  • Economic solutions for small to medium spans
  • Wide variety of typologies

Certificates

      Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Sliding
THERMAL INSULATION
No
EXTERIOR SHAPE
Curved

Technical Characteristics


SASH DEPTH
32 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
85,5 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
79 mm
GLAZING TYPE
Single – Double
MAXIMUM GLAZING THICKNESS
from 4 mm up to 20 mm
MECHANISM
Sliding mechanism
SEALING METHOD
Perimetrical with hi-fin gaskets

Performance


WATER TIGHTNESS
CLASS 2B
AIR PERMEABILITY
CLASS 4

Characteristics


TYPES OF TYPOLOGY
Double and triple horizontal sliding sashes, Meeting stile, Pocket typologies, Combined with fly-screen and shutter
SASH WEIGHT
up to 90 Kg


TYPOLOGIES

All available typologies

01
Double horizontal sliding sash
02
Double horizontal parallel sliding window with rolling shutter
03
Double horizontal parallel sliding window with fixed fanlight
04
Four horizontal sliding sashes with meeting stile
05
Triple horizontal sliding sash
06
Double sliding sash with fixed light
07
Double pocket horizontal sliding window with fly-screen & shutter
08
Single horizontal sliding pocket sash with fly-screen and shutter

3. Sliding insulated system SMARTIA S350

Description

SMARTIA S350 is a modern & flexible insulated sliding system with a modern flat design. It is ideal for refurbishments or renovations thanks to its construction easiness.


Advantages

  • Maximum visibility and natural light, with only 25 mm width at the interlocking profile
  • Easy access with a low threshold, ideal for renovations (version SMARTIA S350 LT)
  • Significant energy savings, thanks to the system’s energy efficiency
  • Wide variety of typologies, compatible with various mechanisms
  • High quality with certified performance

Certificates

Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.

Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


SASH DEPTH
35 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
101 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
102 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
GLAZING TYPE
Double
MAXIMUM GLAZING THICKNESS
up to 28 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Continuous perimetrical tri fin in two levels brush
TYPE OF THERMAL INSULATION
Polyamides 24 mm, Thermoplastic

Performance


WATER TIGHTNESS
CLASS 7Α
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C2/B3
SOUND REDUCTION
38 dB

Characteristics


UF
from 2,4 up to 4,7 W/m²K
SASH WEIGHT
up to 180 Kg
TYPES OF TYPOLOGY
Horizontal sliding, meeting stile, Pocket sliding, Combinations with fixed lights, Combinations with fly-screen and shutter/rolling shutter


TYPOLOGIES

All available typologies

01
Double horizontal sliding sash
02
Triple horizontal sliding sash
03
Four horizontal sliding sashes with meeting stile
04
Double horizontal parallel sliding window with fly-screen
05
quadruple horizontal parallel sliding with meeting stile & fly-screen
06
Double horizontal parallel sliding window with fly-screen & rolling shutter
07
Horizontal sliding pocket sash with shutter
08
Single horizontal sliding pocket sash with fly-screen and shutter
09
Double pocket horizontal sliding window with fly-screen & shutter
10
Single horizontal sliding pocket sash with fly-screen and rolling shutter
11
Double horizontal parallel sliding window with fixed fanlight
12
Double sliding sash with fixed light

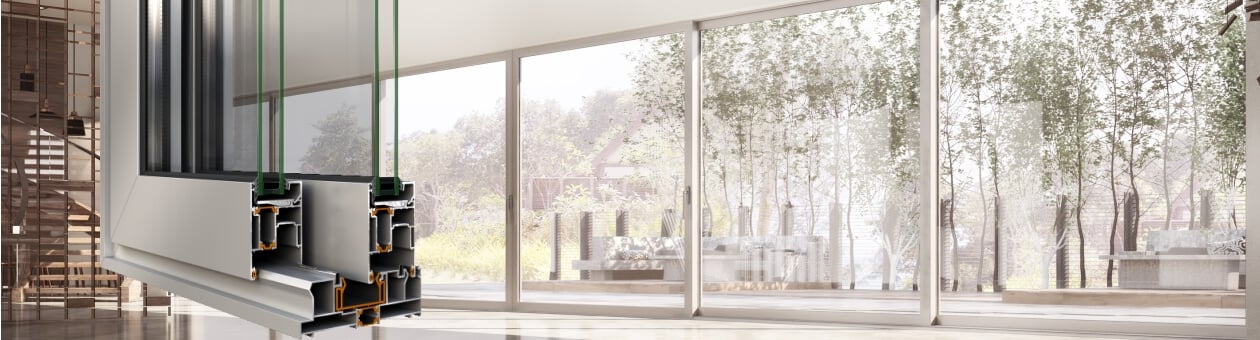

4. Sliding and lift & slide insulated system SMARTIA S560

Description

SMARTIA S560 is a robust, thermally insulated, lift & slide and regular sliding system, which provides high thermal performance, modern design and is ideal for constructions with wide spans.

Advantages

  • Maximum natural light, with only 49 mm of visible aluminium face width at the interlocking profile
  • Easy access with a low threshold, ideal for renovations (version SMARTIA S560 LT)
  • High energy savings, thanks to the system’s remarkable energy efficiency
  • Ease of use and high functionality, even for large spans
  • Wide variety of typologies, compatible with various mechanisms
  • High quality with certified performance

Certificates

Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.

Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Lift & Sliding, Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


SASH DEPTH
56 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
108,5 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
49 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 22 up to 45 mm
MECHANISM
Slide / Lift & Slide mechanism
SEALING METHOD
Continuous perimetrical tri fin in two levels brush and EPDM gasket
MINIMUM THRESHOLD HEIGHT
31 mm
TYPE OF THERMAL INSULATION
Polyamides, Insulation foam, Thermoplastic

Performance


WATER TIGHTNESS
CLASS E1200
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURGLAR RESISTANCE
RC2

Characteristics


SASH WEIGHT
up to 300 Kg
UF
from 2,3 W/m²K
TYPES OF TYPOLOGY
Parallel sliding, meeting style, Pocket Sliding, Corner Sliding, Combinations with fly-screen and shutter/rolling shutter, Multiple tracks


TYPOLOGIES

All available typologies

01
Double lifting sliding sash
02
Four lifting sliding sashes meeting stile
03
Triple lifting sliding sash
04
Six lifting sliding sashes with meeting stile
05
Corner typology in uplifting sliding
06
Double horizontal parallel lifting sliding sash with rolling shutter
07
Double horizontal parallel lifting sliding sash with fly-screen & rolling shutter
08
Single lifting sliding sash with fixed light
09
Two lifting sliding sashes with fixed light
10
Single lifting sliding sash with two fixed lights
11
Double lifting sliding sash with meeting stile & with two fixed lights
12
Single lifting sliding pocket sash with fly-screen & shutter
13
Single sash sliding window with fly-screen
14
Horizontal sliding pocket sash with shutter
15
Double lifting sliding pocket sash with meeting stile, with fly-screen & shutter

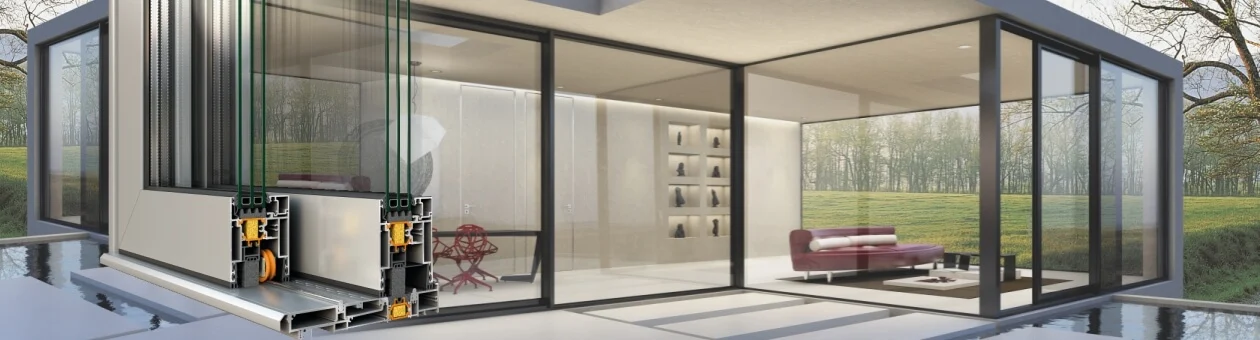

5. Lift & slide insulated system SUPREME S700

Description

The lift & slide system SUPREME S700 represents the new generation of ALUMIL’s high-end systems. It is an excellent solution for projects with demanding requirements, meeting the trend of “transparent” architecture through extensive glass surfaces, with high thermal insulation, safety and modern design. Its minimal design and its various innovative characteristics, make it the ideal option for projects requiring wide spans for enhanced daylight, outstanding performance and maximum ease of use.


Advantages

  • Enhanced natural light thanks to the wide glazing surfaces
  • High energy saving thanks to the exceptional energy efficiency
  • Maximum ease of use and high functionality, optionally combined with automatic motion
  • High security level
  • Exceptional sound insulation
  • Ease of access
  • Wide variety of typologies and solutions
  • Special solutions for hotels
  • Increased static loads and functionality in case of severe weather conditions
  • Exceptional quality with certified performances
  • Available solution for totally concealed bottom frame installation covered with the floor finish (version SUPREME S700 Eclipse)

Certificates

  • atg
  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Lift & Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


SASH DEPTH
70 mm
SASH WEIGHT
up to 600 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
91 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
47 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 22 to 50 mm
MECHANISM
Lift & slide mechanism
SEALING METHOD
Perimetrical with EPDM gaskets & tri-fin brushes
MINIMUM THRESHOLD HEIGHT
24 mm
TYPE OF THERMAL INSULATION
Polyamides, ALUMIL Energy bar, Insulation foam,Thermoplastic

Performance


UW
Uw=1,1W/m²K
WATER TIGHTNESS
CLASS E900
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C4/B4
SOUND REDUCTION
41 dB
BURGLAR RESISTANCE
RC2

Characteristics


TYPES OF TYPOLOGY
Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with flyscreen and shutter, Combinations with fixed lights


TYPOLOGIES

All available typologies

01
Double lifting sliding sash
02
Double lifting sliding sash with narrow interlocking profile
03
Four lifting sliding sashes meeting stile
04
Four lifting sliding sashes meeting stile with narrow interlocking profile
07
Corner typology with four lifting sliding sashes
05
Triple lifting sliding sash
06
Six lifting sliding sashes with meeting stile
08
Single lifting sliding pocket sash with fly-screen & shutter
09
Double lifting sliding pocket sash with meeting stile, with fly-screen & shutter
10
Single lifting sliding sash with fixed light
11
Two lifting sliding sashes with fixed light
12
Single lifting sliding sash with two fixed lights
13
Double lifting sliding sash with meeting stile & with two fixed lights
Double lifting sliding sash with fly-screen

6. Minimal Sliding insulated system SUPREME S650 PHOS

Description

The thermally insulated sliding system SUPREME S650 PHOS is the ideal solution for projects requiring wide spans with minimal aluminium sight lines. Massive yet elegant glazing surfaces are achieved while maintaining high functionality, performances and minimal architectural design.

Advantages

  • Enhanced natural light thanks to the system’s minimal design and the wide glazing surfaces
  • High energy savings thanks to exceptional energy efficiency
  • High-security level
  • Exceptional sound insulation
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies
  • Ideal for wide spans
  • Available three alternative solutions for the on-floor installation, in-floor installation or totally concealed in-floor installation covered with the floor finish (version SUPREME S650 PHOS Eclipse)
  • Alternative version for automated sliding sashes (SUPREME S650 e-ΜΟΤΙΟΝ)
  • Special hotels solutions
  • Increased static loads and functionality in case of severe weather conditions
  • Maximum ease of use and high functionality
  • Exceptional quality with certified performances

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Sliding
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


SASH DEPTH
62 mm
SASH WEIGHT
up to 1000 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
Concealed profiles
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (INTERLOCKING PROFILE)
25 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
up to 46 mm
MECHANISM
ALUMIL
SEALING METHOD
Perimetrical with tri-fin brushes
MINIMUM THRESHOLD HEIGHT
35 mm
TYPE OF THERMAL INSULATION
Polyamides, Thermoplastic

Performance


UW
1,1 W/m²K
WATER TIGHTNESS
CLASS 9A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5
SOUND REDUCTION
46dB
BURGLAR RESISTANCE
RC2

Characteristics


TYPES OF TYPOLOGY
Horizontal sliding sashes, Multiple tracks, Meeting stile, Sliding into the wall cavity, Corner typologies, Combinations with fixed lights, Combinations with fly-screen


TYPOLOGIES

All available typologies

01
Double horizontal sliding sash
02
Single sliding sash with fixed light
03
Four horizontal sliding sashes
04
Double horizontal sliding sash meeting stile with fixed lights
05
Corner typology window, with horizontal parallel sliding sashes
06
Corner typology with two sliding sashes and fixed lights
07
Triple horizontal sliding sash
08
Four horizontal sliding sashes

Check more products

Request a Quote

Ready to Work Together? Build a project with us!

Learn More

Frequently Asked Questions

The frame type you choose is very important and depends on many factors. For example, the available space within the house (furniture, decoration, etc.), the window spans you want to cover, the aesthetics of the space and the building, and many other factors. You can see in detail all the types and further information about the  categories so that you can more easily form an opinion on the suitable frame, but above all, the one you prefer for your space. It is necessary to seek the advice of an expert engineer who has the experience and expertise to suggest the most suitable system based on the requirements of your space.

Each feature is of special importance, and you should pay attention to all of them when choosing your frames. The key performance features to consider when selecting the right aluminium system are:

  • Thermal insulation

  • Security (burglary resistance)

  • Wind load resistance

  • Watertightness

  • Air permeability

  • Sound insulation

Lastly, you should consider that installing or replacing windows and doors is an important decision that can often be called a “life decision.” If you take into account the period of time that the systems remain in a home until they are replaced, then you realize that the choice should be particularly careful.

The reason for choosing a thermally insulated frame is very simple. Because it maintains the internal temperature, minimizing losses. In this way, greater efficiency and economy is achieved. However, you should think not only about the winter months, which represent the typical example to describe heat losses, but also the summer months. Due to the climate of each region and the high temperatures, it is essential that the cooling we try to achieve inside the house during summertime is contained and not channeled to the outside environment through the windows.

Curtain wall systems are used as a building envelope and ensure maximum natural lighting in the internal space, creating a comfortable and safe environment for the people who use the building. Usually, they are found in big buildings covering their façade but in recent years, they can also be found in modern private residences covering any kind of window span, from a living room with a special view to a stairwell. In addition, aluminium curtain walls are also a very popular choice due to their high aesthetic value and the unlimited possibilities they offer in architectural applications. At Alumil, you will find a  complete range of curtain walls that are divided into three (3) main categories: stick type (conventional), structural and unitized.
