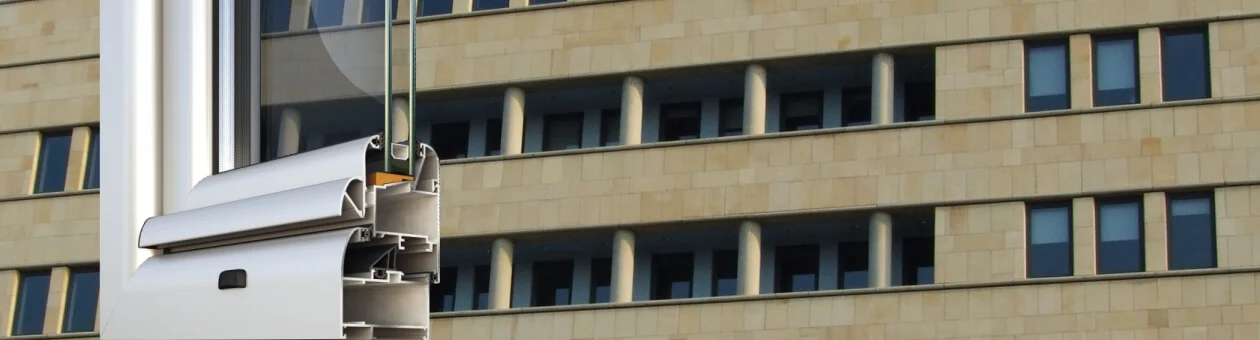

Hinged non insulated system COMFORT M9400

Description

COMFORT M9400 consists one of the most completed non-insulated casement systems which can serve a wide range of different needs with satisfied performances.


Advantages

  • Very good value for money
  • Good security level
  • Good sound insulation
  • Variety of profile design
  • Variety of solutions
  • High functionality

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Hinged
THERMAL INSULATION
No
EXTERIOR SHAPE
Curved, Flat

Technical Characteristics


FRAME DEPTH
45 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
104 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
153 mm
GLAZING TYPE
Single – Double – Triple
MAXIMUM GLAZING THICKNESS
from 4 mm up to 39 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets

Performance


WATER TIGHTNESS
CLASS E750
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5
SOUND REDUCTION
36 dB

Characteristics


SASH WEIGHT
up to 180 Kg
TYPES OF TYPOLOGY
For all tilt & turn typologies


TYPOLOGIES

All available typologies

01
One sash tilt and turn
02
Τilt and turn with fix light on top
03
Τilt and turn with fanlight
04
Double tilt and turn window
05
Double tilt and turn with light
06
Double tilt and turn window with fixed light
07
Single sash tilt & turn with shutter
08
Double tilt and turn window with shutter
09
Hinged inwards entrance door with kick plate
10
Hinged outwards entrance door with kick plate
11
Double leaf action door

Hinged non insulated system COMFORT M940

Description

COMFORT M940 is an economical and lightweight non-insulated system for tilt & turn casements without compromising performance and is available in a variety of solutions.


Advantages

  • Very good value for money
  • Economic solutions for small spans
  • Wide variety of typologies

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Hinged
THERMAL INSULATION
No
EXTERIOR SHAPE
Classic, Curved, Flat

Technical Characteristics


FRAME DEPTH
37 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
81,7 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
131 mm
GLAZING TYPE
Single – Double
MAXIMUM GLAZING THICKNESS
from 4 mm up to 24 mm
MECHANISM
Euro-groove
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets

Performance


WATER TIGHTNESS
CLASS 8A
AIR PERMEABILITY
CLASS 4

Characteristics


SASH WEIGHT
up to 130 Kg
TYPES OF TYPOLOGY
For all tilt & turn typologies


TYPOLOGIES

All available typologies

01
One sash tilt and turn
02
Τilt and turn with fix light on top
03
Τilt and turn with fanlight
04
Double tilt and turn window
05
Double tilt and turn with light
06
Double tilt and turn window with fixed light
07
Double tilt and turn window with shutter
08
Double horizontal parallel sliding window with fixed lights
09
Hinged inwards entrance door with kick plate
10
Hinged outwards entrance door with kick plate

Hinged insulated system SMARTIA S77

Description

The system SMARTIA S77 is ALUMIL’s proposal for advanced insulating casements, which meet the high standards of all advanced markets and incorporate a modern design. It is the ideal solution for projects that require high performance and maximum security.

Advantages

  • Very high energy savings thanks to high energy efficiency (Passive House certified)
  • High security level
  • Exceptional sound insulation
  • Ease of use and high functionality
  • Modern design
  • Ease of access according to specifications for people with special needs and children
  • Wide variety of typologies and solutions
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions
  • Suitable for Passive House constructions in regions that lie in warm/temperate climate zone

Certificates

  • atg
  • PAS 24
  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • QB-PROFILES-ALU-RPT-FR
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


FRAME DEPTH
77 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
122 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 24 up to 72 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MINIMUM THRESHOLD HEIGHT
13 mm
TYPE OF THERMAL INSULATION
Polyamides 40 mm width, ALUMIL Energy bar, Insulation foam

Performance


WATER TIGHTNESS
CLASS E1350
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
SOUND REDUCTION
42 dB
BURGLAR RESISTANCE
RC2/RC3

Characteristics


SASH WEIGHT
up to 180 Kg
UF
from 0,85 to 2,42 W/m²K
TYPES OF TYPOLOGY
For all tilt & turn typologies, pivot windows


TYPOLOGIES

All available typologies

01
One sash tilt and turn
02
Single tilt & turn casement with P.W.D. low thresold
03
Double tilt and turn window
04
Double tilt and turn window with low thresold
05
Double tilt and turn with light
06
Double tilt and turn window with fixed light
07
Double tilt and turn with fanlight
08
Horizontal pivot window
09
Vertical pivot window

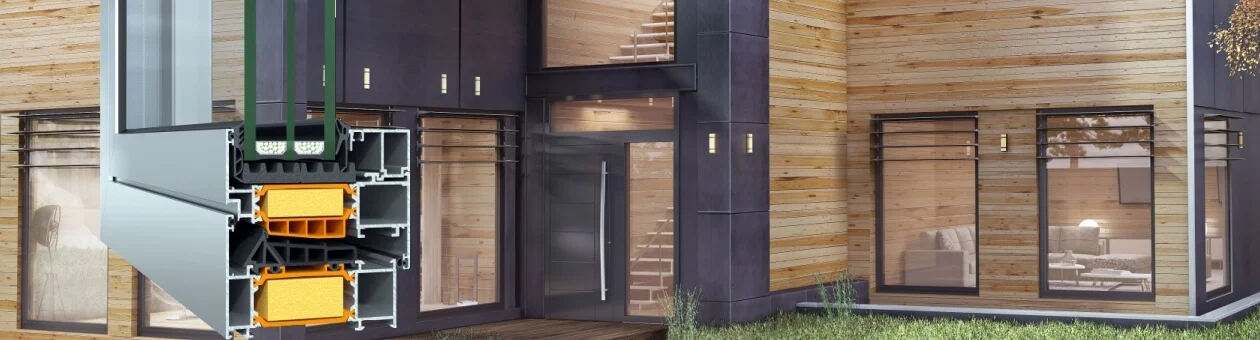

Hinged insulated system SUPREME S91

Description

The system SUPREME S91 was specially designed in order to meet the high requirements of passive houses. It is ideal for heavy duty and energy efficient constructions offering a high security level. The system’s development was driven by the need for best in class performances in terms of thermal insulation, water tightness, as well as sound reduction. The system is the perfect solution for the most demanding markets.

Advantages

  • Maximum energy savings thanks to the Passive House energy efficiency
  • High security level
  • Exceptional sound insulation
  • Modern design
  • Ease of use and high functionality
  • Exceptional quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


FRAME DEPTH
91 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
93mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
151 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
from 37 up to 81 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM & foam EPDM gaskets
MINIMUM THRESHOLD HEIGHT
13 mm
TYPE OF THERMAL INSULATION
Polyamides 54 mm width, ALUMIL Energy bar, Insulation foam

Performance


WATER TIGHTNESS
CLASS E1650
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
SOUND REDUCTION
47 dB
BURGLAR RESISTANCE
RC2/RC3

Characteristics


TYPES OF TYPOLOGY
For all tilt & turn typologies
SASH WEIGHT
up to 180 Kg
UF
from 0,67 to 1,1 W/m²K


TYPOLOGIES

All available typologies

01
One sash tilt and turn
02
Τilt and turn with fix light on top
03
Τilt and turn with fanlight
04
Double tilt and turn window
05
Double tilt and turn with light
06
Double tilt and turn window with fixed light
07
Double tilt and turn with fanlight
08
Double tilt and turn with fixed lights sideways

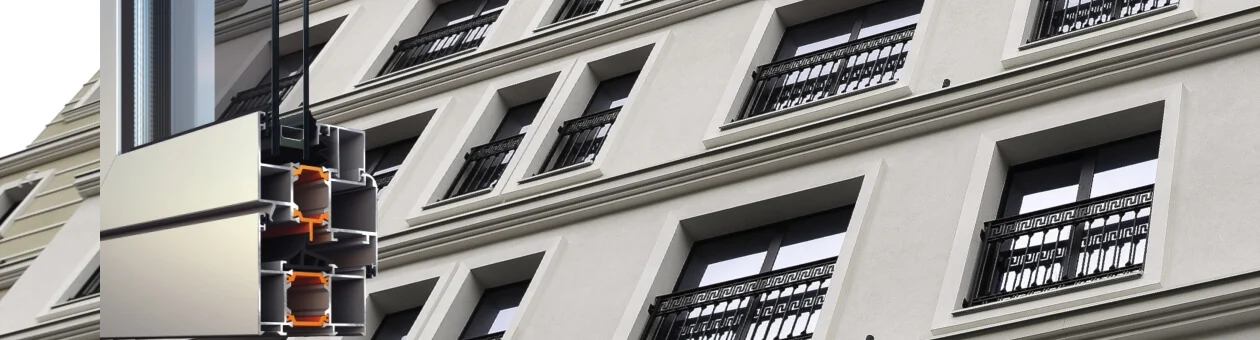

Hinged insulated system SMARTIA M11000

Description

SMARTIA M11000 is a Tilt & Turn insulated hinged system that can meet the most demanding needs thanks to a large variety of solutions and designs

Advantages

  • High value for money
  • High energy savings due to the high energy efficiency of the system
  • Increased level of security
  • High level of sound insulation
  • Enhanced natural light thanks to the possibility to use hidden sash
  • Ease of use and high functionality
  • Modern design for windows either with flat or curved line
  • High quality with certified performances
  • Increased static loads and functionality in case of severe weather conditions

Certificates

  • Aluminum TUV Austria OK Recycled

Generic


WINDOW TYPE
Hinged
THERMAL INSULATION
Yes
EXTERIOR SHAPE
Classic, Curved, Flat

Technical Characteristics


FRAME DEPTH
62,5 mm
SASH DEPTH
70 mm
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
70 mm
MINIMUM VISIBLE ALUMINIUM FACE WIDTH AT THE CENTRAL VERTICAL COLUMN (ADJOINING PROFILE)
61 mm
GLAZING TYPE
Single – Double – Triple
MAXIMUM GLAZING THICKNESS
from 20 up to 59 mm
MECHANISM
Euro-groove, Euro-nut
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets
TYPE OF THERMAL INSULATION
Polyamides 24 mm & 20 mm

Performance


WATER TIGHTNESS
CLASS Ε900
AIR PERMEABILITY
CLASS 4
SOUND REDUCTION
47 dB
BURGLAR RESISTANCE
RC2/RC3

Characteristics


UF
from 2,3 up to 2,9 W/m²K
TYPES OF TYPOLOGY
For all tilt & turn typologies
SASH WEIGHT
up to 180 Kg


TYPOLOGIES

All available typologies

01
One sash tilt and turn
02
Τilt and turn with fix light on top
03
Τilt and turn with fanlight
04
Double tilt and turn window
05
Double tilt and turn with light
06
Horizontal pivot window
07
Vertical pivot window
08
Double tilt and turn window with fixed light
09
Double tilt and turn with fanlight
10
Double tilt and turn with fixed lights sideways
11
Single tilt & turn casement (Concealed sash)
12
Single tilt & turn casement with fixed light (Concealed sash)
13
Double tilt and turn window (Concealed sash)
14
Hinged door inwards/outwards
15
Double leaf door inwards/outwards opening
16
Hinged door inwards/outwards with insulation panel & fixed pane
17
Hinged door inwards/outwards with insulation panel, fixed pane & fanlight
