Entrance Door SD95

Entrance doors insulated system SUPREME SD95

Description

The system SUPREME SD95 belongs to ALUMIL’s series for entrance doors with high quality standards. The system includes a complete range of thermal break profiles with flat design for totally aligned constructions that offer high functionality. Offering many infill options including aluminium or glass panels, the SUPREME SD95 is able to meet the most demanding architectural trends and aesthetics.


Advantages

  • Maximum energy savings thanks to the exceptional energy efficiency
  • High security level
  • Modern design
  • Ease of access according to specifications for people with special needs and children
  • Exceptional sound insulation
  • Ease of use and high functionality
  • Wide variety of typologies
  • Exceptional quality with certified performances

Certificates

  • Cradle to Cradle Certified® is the global standard for products that are safe, circular and responsibly made.
  • Aluminum TUV Austria OK Recycled

Generic


THERMAL INSULATION
Yes
EXTERIOR SHAPE
Flat

Technical Characteristics


FRAME DEPTH
95 mm
GLAZING TYPE
Double – Triple
MAXIMUM GLAZING THICKNESS
24 up to 54 mm
MECHANISM
Perimetrical locking mechanism
SEALING METHOD
Perimetrical at 3 levels with EPDM gaskets

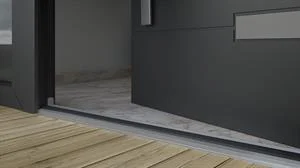

MINIMUM THRESHOLD HEIGHT
22 mm
TYPE OF THERMAL INSULATION
Polyamides 34 mm width, ALUMIL Energy bar, Insulation foam

Performance


WATER TIGHTNESS
CLASS 3A
AIR PERMEABILITY
CLASS 4
WIND LOAD RESISTANCE
C5/B5
BURGLAR RESISTANCE
RC3

Characteristics


SASH WEIGHT
up to 180 Kg
MINIMUM VISIBLE ALUMINIUM FACE HEIGHT
122 mm
UF
from 1,2 up to 2,1 W/m²K
TYPES OF TYPOLOGY
For all entrance door typologies with glass or aluminium panels


TYPOLOGIES

All available typologies

01
Hinged entrance door
02
Double leaf entrance door with glazing infill
03
Hinged door with insulation panel
04
Double leaf door with insulation panel
05
Hinged door with insulation panel & fixed pane
06
Hinged door with insulation panel, fixed pane & fanlight
07
Hinged door with insulation glazing panel & fixed pane
08
Hinged door with insulation glazing panel, fixed pane and fanlight

Sections

Check more products

Request a Quote

Ready to Work Together? Build a project with us!

Learn More

Frequently Asked Questions

The frame type you choose is very important and depends on many factors. For example, the available space within the house (furniture, decoration, etc.), the window spans you want to cover, the aesthetics of the space and the building, and many other factors. You can see in detail all the types and further information about the  categories so that you can more easily form an opinion on the suitable frame, but above all, the one you prefer for your space. It is necessary to seek the advice of an expert engineer who has the experience and expertise to suggest the most suitable system based on the requirements of your space.

Each feature is of special importance, and you should pay attention to all of them when choosing your frames. The key performance features to consider when selecting the right aluminium system are:

  • Thermal insulation

  • Security (burglary resistance)

  • Wind load resistance

  • Watertightness

  • Air permeability

  • Sound insulation

Lastly, you should consider that installing or replacing windows and doors is an important decision that can often be called a “life decision.” If you take into account the period of time that the systems remain in a home until they are replaced, then you realize that the choice should be particularly careful.

The reason for choosing a thermally insulated frame is very simple. Because it maintains the internal temperature, minimizing losses. In this way, greater efficiency and economy is achieved. However, you should think not only about the winter months, which represent the typical example to describe heat losses, but also the summer months. Due to the climate of each region and the high temperatures, it is essential that the cooling we try to achieve inside the house during summertime is contained and not channeled to the outside environment through the windows.

Curtain wall systems are used as a building envelope and ensure maximum natural lighting in the internal space, creating a comfortable and safe environment for the people who use the building. Usually, they are found in big buildings covering their façade but in recent years, they can also be found in modern private residences covering any kind of window span, from a living room with a special view to a stairwell. In addition, aluminium curtain walls are also a very popular choice due to their high aesthetic value and the unlimited possibilities they offer in architectural applications. At Alumil, you will find a  complete range of curtain walls that are divided into three (3) main categories: stick type (conventional), structural and unitized.
